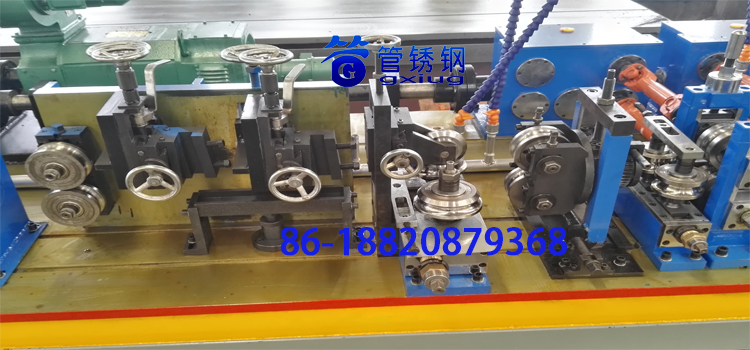

One of the welded pipe molds is a guide mold, also known as a guide roller. The main function is to control the position and direction of the weld to achieve the purpose of good welding. For the High Frequency Welded Pipe Mold, the design of the guide roller is more critical. The design of the width of the guide plate will directly affect the quality of the weld and the welding effect. As a part of the industry, Foshan GXG Technology Co., Ltd. I have my own set of views on the design of high frequency welded pipe molds, I hope it can help everyone.

The design of the guide sheet in the guide roller of the High Frequency Welded Pipe Mold needs to consider the specific conditions of the welded pipe, such as the pipe diameter of the welded pipe, the wall thickness of the welded pipe, the wall thickness of the welded pipe, and of course the material of the welded pipe. When welding thick pipes, the thickness of the guide plate should be increased accordingly, otherwise the strength of the guide plate is not enough, and it is easy to break and damage. Thick points should also be designed for fast welded pipes. For some thin tubes, or when the welding speed is not too fast, the thickness of the guide plate can be appropriately thinner.

The thickness of the guide plate of the High Frequency Welded Pipe Mold is generally 3-5mm thickness, which depends on your specific needs.

Key words:High Frequency Welded Pipe Mold
