Decorative pipe making machine
Tube shape: round / square / rectangle / special shape, etc
Application scope: pipes used in furniture, construction, municipal facilities and other fields
Pipe range: Φ 5-325mm
Square tube range: 10 * 10-250 * 250 mm
Wall thickness range: 0.15-10 mm
Consultation
Product details

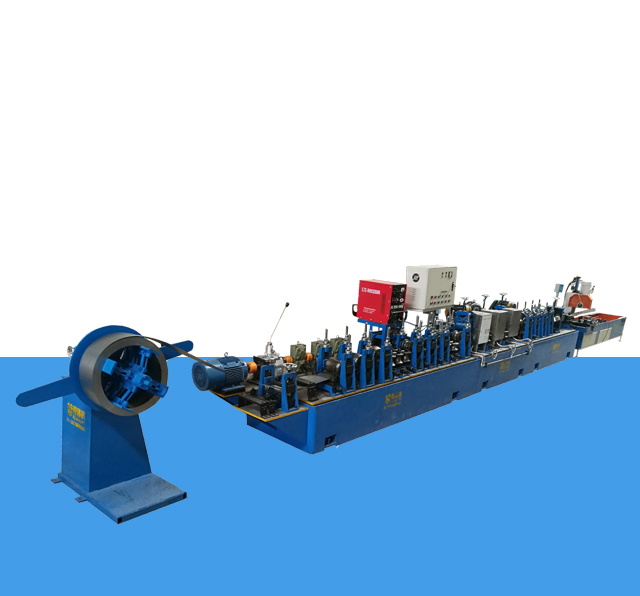

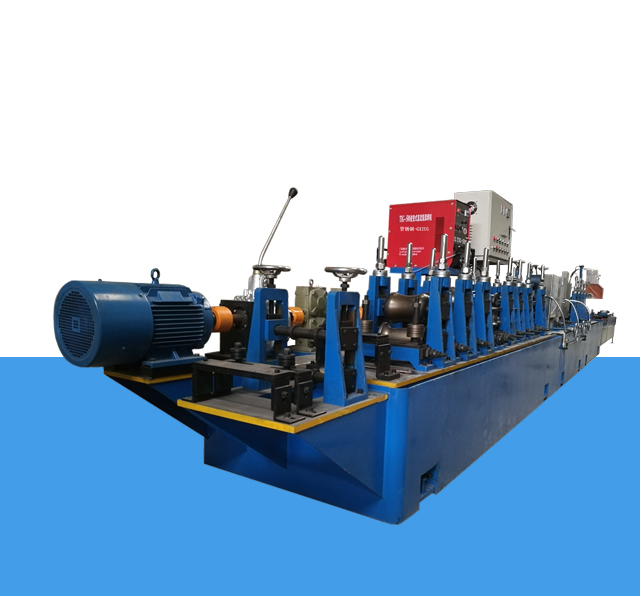

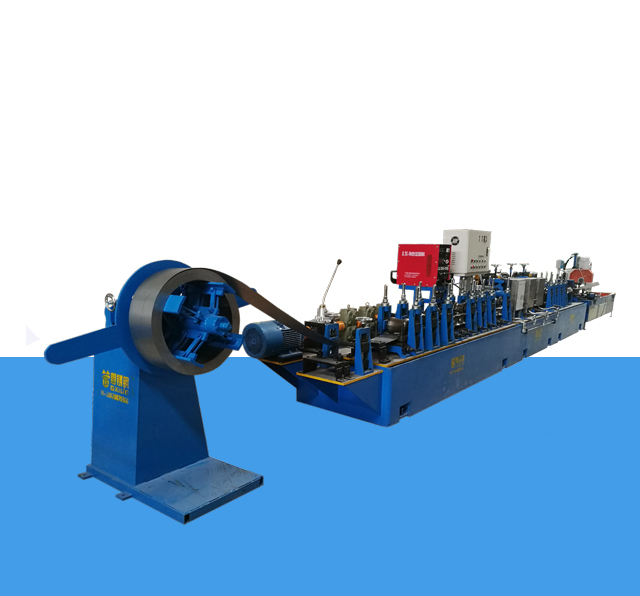

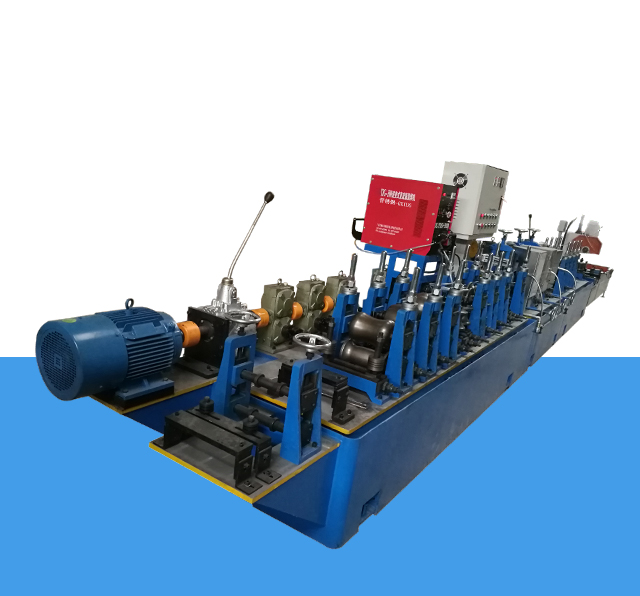

Decorative pipe making machine
Product introduction
Decorative pipe making machine is a professional equipment mainly producing stainless steel decorative pipe. It can be used to produce pipes with low strength and high ornamental requirements such as handrails, railings, tables and chairs, doors and windows. It can produce round, square, rectangular, special-shaped and other shapes. It is suitable for stainless steel, iron, copper / galvanized metal pipe manufacturing.

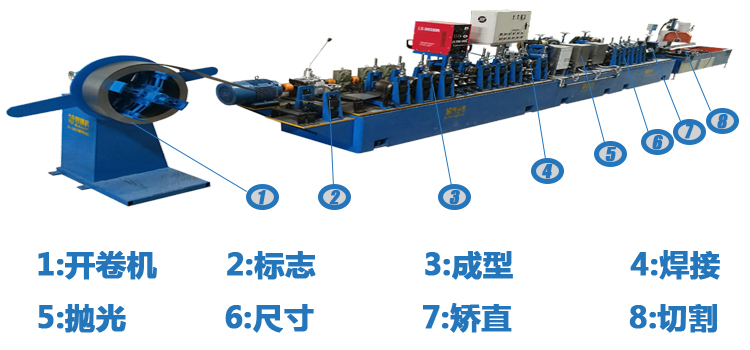

Production process
Model & Parameter
|
Decorative Pipe Making Machinery |
|||||
|
Model |
Tube diameter range (mm) |
Wall thickness range (mm) |
Power of main motor (KW) |
Installed capacity (KW) |
Product tolerance (mm) |
|
GXG-30
|
Ø5—31.8 1/5"—1-1/4" |
0.15—0.8
|
4.0
|
15.0
|
±0.05—0.10
|
|
GXG-40
|
Ø9.5—50.8 3/8"—2" |
0.23—1.5 |
5.5
|
16.5
|
±0.05—0.15
|
|
GXG-L40 |
Ø15.9—63.5 5/8"—2-1/2" |
0.30—1.8 |
7.5
|
18.5
|
±0.05—0.20
|
|
GXG-50 |
Ø19.1—76.2 3/4"—3" |
0.35—2.5 |
11.0
|
25.0
|
±0.05—0.25
|
|
GXG-60
|
Ø31.8—114.0 1-1/4"—4-1/2" |
0.55—3.0 |
15.0
|
37.0
|
±0.10—0.30 |
