Metal Coil Cold rolling mill
Material: stainless steel, carbon steel, aluminum, etc
Width range: 350-1450mm
Thickness range: 0.2-3.5mm
Roll system mode: 4 rolls / 6 rolls / 8 rolls, etc
Screwdown mode: screw / AGC
Consultation
Product details

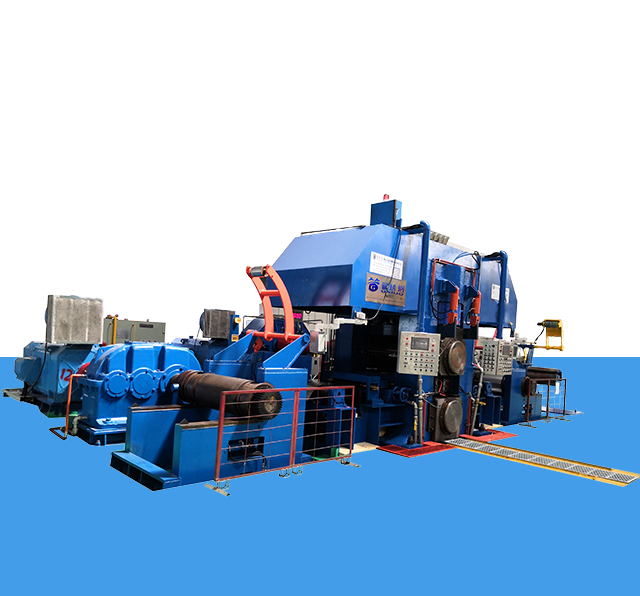

Metal Coil Cold Rolling Mill
Product Introduction
Metal coil cold rolling mill is a professional equipment for cold rolling and rolling of hot rolled coils. The equipment has 4 rolls, 6 rolls, 8 rolls and other designs. It is designed with two modes of screw reduction and AGC reduction for customers to choose. It is suitable for stainless steel coil, iron coil, carbon steel coil, aluminum coil, galvanized coil. Cold rolled and rolled metal steel coils such as copper coils have the characteristics of high speed and high accuracy.
Production Process
Model & Parameter
|
Stainless steel metal coil cold rolling mill |
|||||||||
|
Model |
GXG-550 |
GXG-650 |
GXG-700 |
GXG-750 |
GXG-850 |
GXG-950 |
GXG-1150 |
GXG-1450 |
|
|
Coil width （mm） |
350-500 |
400-560 |
480-630 |
550-680 |
650-750 |
700-850 |
850-1000 |
1000-1250 |
|
|
Coil material thickness（mm） |
2-3 |
2-3 |
2-3 |
2-3 |
2-3 |
2-3 |
0.6-2.5 |
0.6-3.5 |
|
|
Finished coil thickness（mm） |
0.2-1 |
0.2-1 |
0.2-1 |
0.2-1 |
0.2-1 |
0.2-1 |
0.2-0.6 |
0.2-0.6 |
|
-
Stainless Steel Coil Cold Roll…
Look and see.
