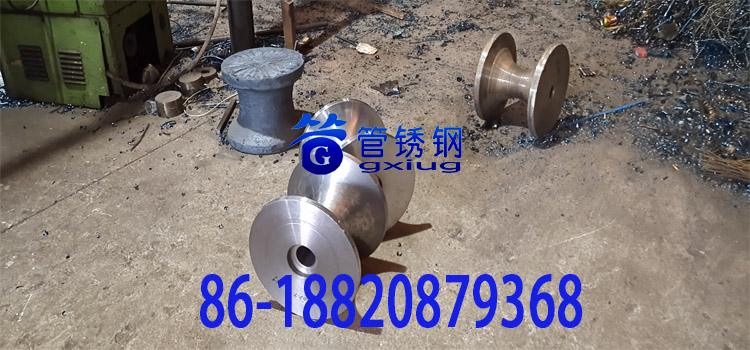

The keyway specifications of welded pipe mould are different, so how to design the keyway specifications? This needs to consider the shaft diameter of the pipe welding machine. Generally, different shaft diameters correspond to or select different keyway specifications.

The most commonly used models in our market are 40, 50 and 60. These models are more. However, many welded pipe enterprises buy large-scale welded pipe machines, such as 100, 120 and so on. Different manufacturers have different names. Then the corresponding specifications of welded pipe mould keyways are 8, 10 and 12, and the corresponding specifications of large machines are 18 and 20. These are just conventional designs, There are some exceptions. For some industrial pipe 50 type pipe making machines, the specification of the keyway of the welded pipe die is 12, which indicates that the width of the keyway of the shaft diameter of the pipe making machine is 12. These are special designs.

The keyway specification of welded pipe mould can be divided into general design and special design. When purchasing welded pipe mold, you must ask for these data clearly.

Key words: welded pipe mould
